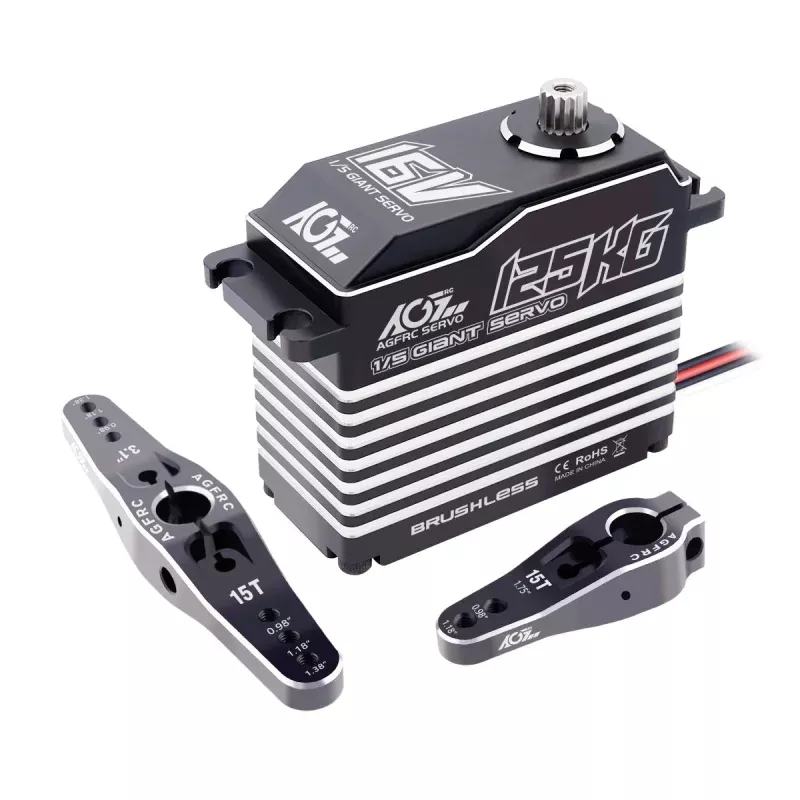

AGFRC125KGMega Torque16V 4S LiPo IP67 Waterproof0.080Sec High Speed ProgrammableMagnetic Angel Sensor Steel Gears BrushlessDigital Servo for 1/5 Giant Scale RC Models (A280BVSW)
A280BVSW is a large size 1/5 servo recently come out by AGFRC. It combines long-life brushless motor with monstertorque design takes the driving experience of large model enthusiasts to a new level.A280BVSW servo is ideal for 1/5 Monster Truck, Buggy,Crawler, Large Airplanes,Robot Arm,etc.Whether you are traversing the jungle or climbing over sand dunes, 5 ball bearings and strengthening gear struture improve the crashworthiness and life of the servo.
When you cross the mountains and pass the charming stream, fully magnetic waterproofIP67 grade can letyour model play with the river.Under the cooperation of 3s and 4s lipo high voltage, 100KG high torque and 0.095Sec lightning speed, believe that your model can give full play to its handsome charm.Ultra light unique design with heat sink machining for medium and bottom case, so that the internal structure of the servocan absorb heat and smooth operation.Of course!In this era of rapid development, free choice is also a kind of happiness!
Sohow could we do withoutthe programmable function? It is allow to be programmable via USB ProgrammerAGF-SP V3now.In the near futuret it is available to be bluetooth APP programmable. Please don’t hesitate to add a reliable new partner to your model!
Feature
Heat Sink Aluminum Case
Extremely Strong Steel Gears
Super Reliable Five Ball Bearing
3S and 4S Lipo Compatible
Associated 15T Aluminum Servo Horns
Magnetic Sensor Waterproof IP67
Easy Connection With Direct Power Wire
Available for Parameter Programmable(Please use with AGFRC USB Programmer AGF-SP V3)
Bluetooth APP Programmable (Still not available now)
Note:
1) “Servo Neutral” function of AGFRC A280 Series 5th scale servos are not available to program, please well known before you orde it.
2) Sanwa compatible: A280 Series servos is compatible with Sanwa SHR Mode only.
Stall Torque
-
-
- 78.0kg-cm (1084oz-in)@10.0V
- 83.0kg-cm (1153oz-in)@11.1V
- 92.0kg-cm (1279oz-in)@12.0V
- 100.0kg-cm (1390oz-in)@12.6V
-
110.0 kg-cm (1529 oz-in)@ 14.4V
125.0 kg-cm (1738 oz-in)@ 16.0V
-
Operating Speed
-
-
- 0.120 sec/60@10.0V
- 0.110sec/60@11.1V
- 0.100sec/60 @12.0V
- 0.095sec/60 @12.6V
-
0.090 sec/60 @ 14.4V
0.080 sec/60 @ 16.0V
-
Package Included
Item 1:
1 x AGFRC 1/5 A280BVSW 3/4S LiPo Servo
-
- 1 x 15T Black Metal Servo Single Horn
- 1 x 15T Black Metal Servo Double Arm
- 1 x 3S Blance Plug Cable
- 1 x 4S Blance Plug Cable
- 1 x Accessory Kit
-
Item 2:
1 x AGFRC 1/5 A280BVSW 3/4S LiPo Servo
1 x AGF-SPV3 Servo Programmer
-
- 1 x 15T Black Metal Servo Single Horn
- 1 x 15T Black Metal Servo Double Arm
- 1 x 3S Blance Plug Cable
- 1 x 4S Blance Plug Cable
- 1 x Accessory Kit
-
