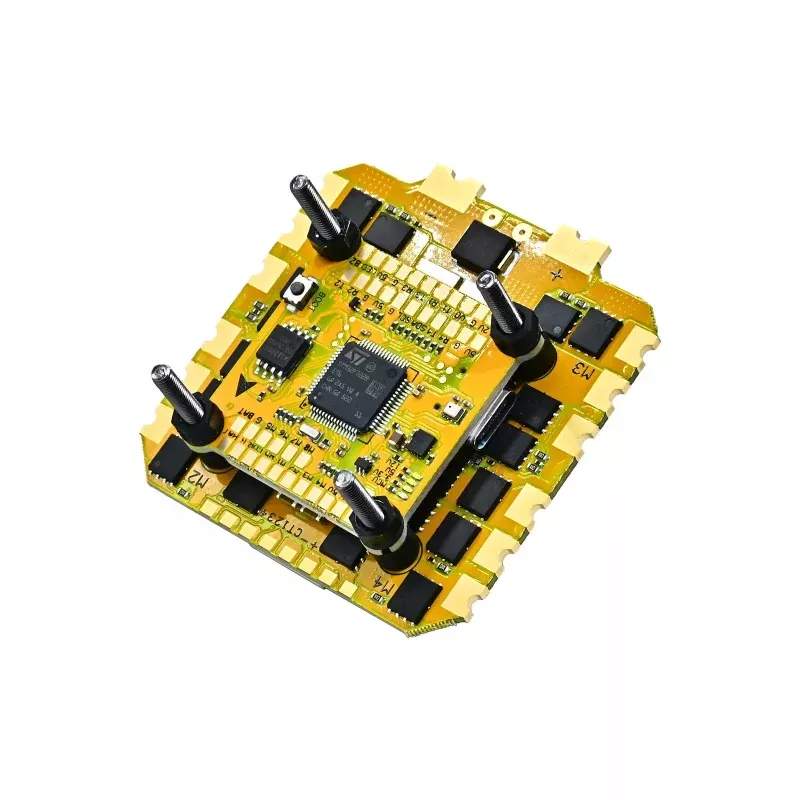

F722 30.530.5 Flight Controller
MCU: STM32F722
IMU (Gyro): ICM42688p (Default)
Blackbox: 8M
OSD: BetaFlight OSD (AT7456E chip)
Barometer: SPA06-003
USB Port: Type-C
DJI Air Unit Connector: Yes
Power Input: 3-6S LiPo
BEC Output:
5V / 3A total
12V / 2.5A total
UART Ports (5 sets)
-
UART1: VTX data setting
-
UART2: RC link
-
UART3: GPS
-
UART4: Vacant
-
UART5: ESC telemetry (dedicated)
Other Interfaces
-
ESC Signal: M1M4
-
I2C: Yes (SDA/SCL for magnetometer)
-
LED Pad: WS2812 compatible
-
Buzzer Pad: Yes
-
BOOT Button: Yes
-
Firmware Target: STM32F722
Mounting & Dimensions
-
Mounting Holes: 30.530.5mm (3.65mm hole)
-
Dimensions: 37376.6mm
-
Weight: 7.0g
32Bit 100A 30.530.5 4-in-1 ESC
MCU: STM32G071
MOSFET: 40V High Performance MOSFET
Power Input: 3-8S LiPo
Continuous Current: 100A 4
Burst Current: 110A
ESC Telemetry: Yes
Current Sensor Scale: 200
ESC Protocol: PWM, Oneshot125, Oneshot42, Multishot, DShot300/600
Firmware Support
-
BLHeli32
-
AM32
Mounting & Dimensions
-
Mounting Holes: 30.530.5mm (4mm hole)
-
Dimensions: 57567mm
-
Weight: 28g
Compatibility & Setup Notes
-
Direct ESC telemetry to UART5 on F722 flight controller
-
Supports up to 8S LiPo for high-voltage builds
-
Compatible with BetaFlight ESC telemetry features
-
Same mounting pattern (30.530.5mm) for easy stacking
