FOXEER cost-effective FPV camera, 1200 line ultra clear lens.
-
1200TVL has supernatural image quality and restores FPV flight pictures.
-
Low latency, high speed, high speed flight without card.
-
Low illumination, can see the picture in low light conditions.
-
Wide voltage input, wiring is more convenient.

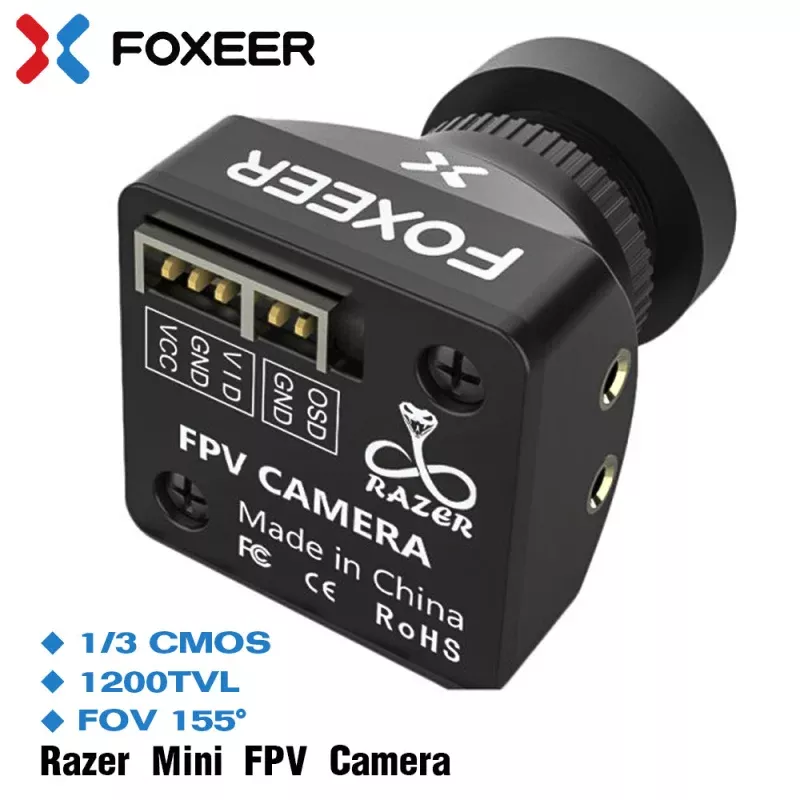

Razer Mini
-
Brand Name: Foxeer
-
Item Name: Razer Mini
-
Color: Black
-
Scale: 4:3 / 16:9 (optional)
-
Lens: 1.8mm, 2.1mm (Default 2.1mm)
-
Sensor Type: 1/3 CMOS
-
TV System: PAL / NTSC Switchable
-
Resolution: 1200TVL
-
FOV: 4:3 FOV-H 125, FOV-D 155 / 16:9 FOV-H 125, FOV-D 145
-
Shutter Speed: PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec
-
Video Out: CVBS
-
Min. Illumination: 0.01Lux
-
White Balance: Auto
-
DNR: 3DNR
-
WDR: 90db
-
Day / Night Shift: EXT / Auto / Color / B&W
-
Power Requirement: DC 4.5V~25V
-
Language: English / Chinese / Pyccknn / Espanol / Francais / Polski / Italiano / Portugues / Japanese / Korean / Eaahnika
-
Working Temperature: -10 ~ +50 RH90% MAX
-
Working Humidity: 20~80%
-
Storage Temperature: -20 ~ +70
-
Storage Humidity: 20~95%
-
Dimension: 21.8×21.8mm (without bracket)
-
Weight: 12g
Package Included:
Razer MiniCam x1
Bracket (21-28) x1
Servo Cablex1
2Pin OSDCablex1
OSD Boardx1 Manualx1
Screwsx1
