EDF Test Stand PRO III – 64-160mm Fan Thrust Tester with Digital Scale
*Precision thrust measurement for 64-160mm EDF units*
Key Features
Heavy-Duty Aluminum Base– Machined for maximum stability
Digital Thrust Scale– Measures in kg/lb/oz with backlit display
Wide Compatibility– Works with 64-160mm EDFs (adapters included)
Temperature Monitoring– Built-in temp sensor for motor testing
Secure Mounting– Bolt-down design prevents movement
Max Thrust: 45kg– Handles even powerful jet turbines
Technical Specs
-
Dimensions:200165110mm
-
Weight:2200g (solid aluminum construction)
-
Power:2AA batteries (not included)
-
Measurement Units:kg, lb, oz, jin
-
EDF Range:64-160mm (120mm native, 160mm with adapter)
How It Works
-
Secure EDF unit to test stand
-
Connect power system
-
Measure thrust in real-time
-
Monitor motor temperature
-
Compare different setups safely

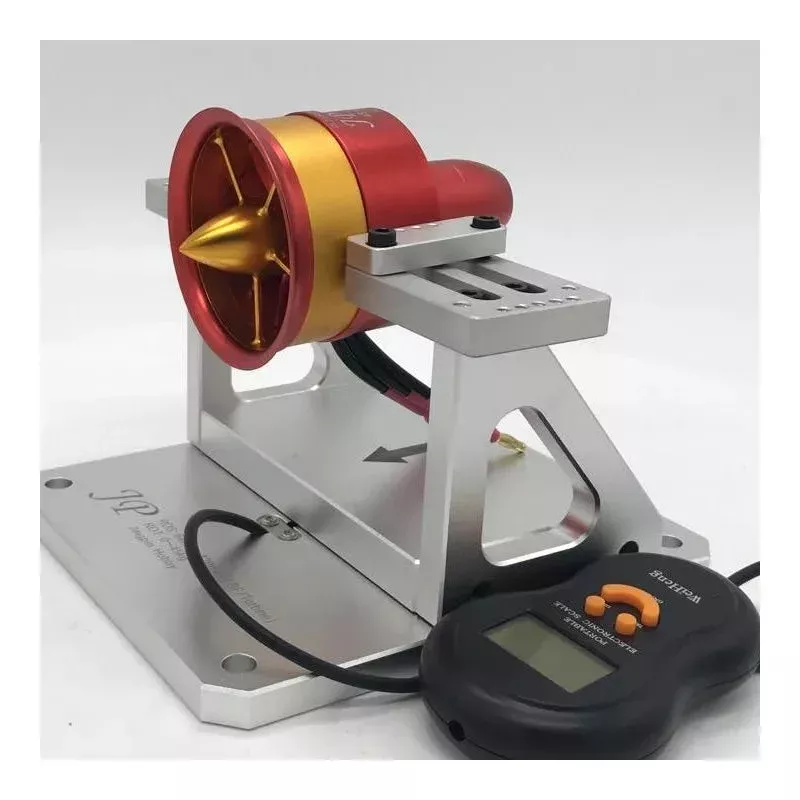

Note: EDF unit shown in photos not included
Requires
- 2 x AA Batteries
- EDFUnit
Note: the visible EDF unit is not included.
