Key Features
-
TCXO Technology
Temperature-stable frequency control for consistent performance in extreme conditions -
True Antenna Diversity
Dual antenna inputs with automatic switching for optimal signal reception -
High-Performance RF
Skyworks SE2431L with LNA for improved range and 100mW PA for strong telemetry -
Easy Firmware Updates
Built-in Wi-Fi allows over-the-air updates without removing the receiver -
Bind-Free Setup
ExpressLRS bind phrase eliminates physical buttons and bind plugs -
Compact Nano Design
22134mm size with optimized PCB for better heat dissipation
ExceptfortheRP3 Receiver,wealsoprovidetheRP1andRP2 Receiver for your choice.
Features
- OptimizedPCBdesignforbetter heatdissipation.
- LNAforbetterreceiverrange.
- PAforbettertelemetryrange.
- AntennaDiversityforimprovedsignalstabilityandrange.
- Built-in a TCXO (temperature compensated crystal oscillator)
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specification
- Item:RP3DiversityReceiver
- Type:ISM
- MCU:ESP8285
- RFChip:SX1281
- Telemetry RF power: Max 100mw
- Antenna:65mm2.4ghzTAntenna x 2
- FrequencyRange:2.404 – 2.479 Ghz
- Maximumreceiverefreshrate:500Hz/F1000Hz
- Minimumreceiverrefreshrate:25Hz
- Working voltage: DC 5V
- Weight:4.6g(Includingtwoantenna)
- Dimension:22mm*13mm*4mm
- FirmwareVersion:ExpressLRSv3.0pre-installed
- FWTarget:RadioMasterRP3Diversity2400RX
- Businterface:CRSF
TCXO(temperature compensated crystal oscillator)
The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation.Click to learn more about the TCXO.
Size
Download
- RP1 Receiver User Manual
- RP2 Receiver User Manual
- RP3 Receiver User Manual
Package Includes

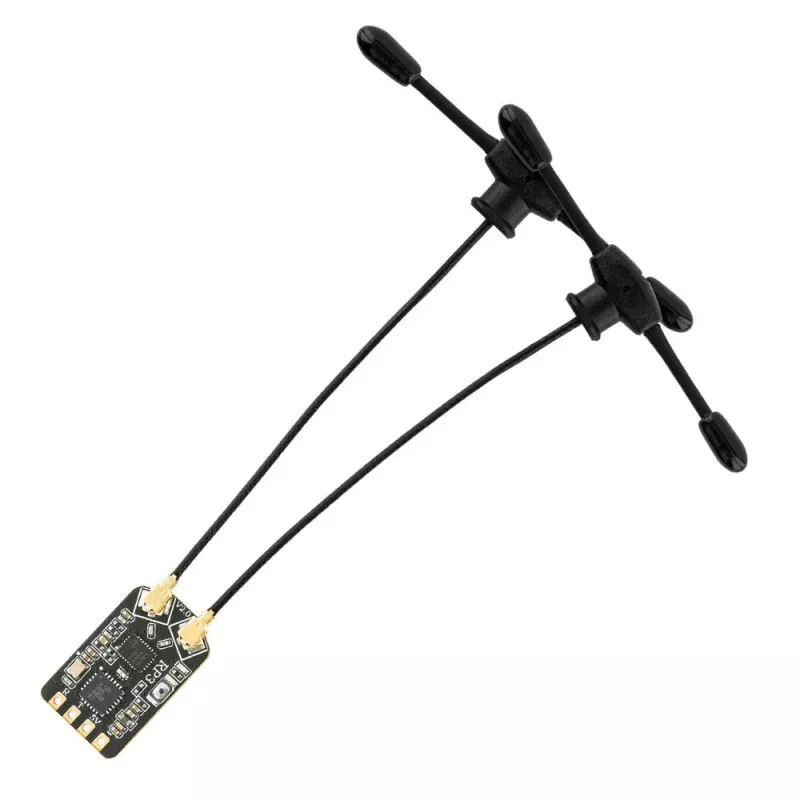

- 1 * RP3 ExpressLRS 2.4ghz Nano Receiver
- 2 *65mm UFL 2.4Ghz T Antenna
- 1 *User Manual
- 1 * CRSF wire
