Key Features
-
AG02 CNC Aluminum Gimbals
Anodized red/black/gold options with 20% reduced weight and adjustable dual-axis travel. -
STM32 H7 Processor
Enables lightning-fast EdgeTX response, instant model switching, and smooth script execution. -
Customizable RGB Lighting
Integrated LED rings around gimbals with LUA-controlled lighting effects. -
Dual-Band ELRS
Built-in 2.4GHz & 900MHz ExpressLRS for maximum range and reliability. -
3.5″ IPS Touchscreen
480320 resolution, 600 nits brightness, and 262k colors for clear outdoor visibility. -
Premium Controls
Upgraded aluminum buttons, scroll wheel, and carbon-fiber-look case. -
Advanced Cooling
Low-noise fan and aluminum heat sink maintain optimal performance.
Prefer the standard model? See theTX15 Standard.
Step into the future.TX15: The Future Is Here, One Step Ahead.
Features
- Blazing-Fast Performance:The STM32 H7 chip powers our fastest radio ever.
- Touchscreen Display:3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.
- Precision Gimbals:the premium AG02 gimbals for enhanced smoothness.
- Built-in ExpressLRS:2.4GHz / 900MHz ExpressLRS integration for reliable and long-range control.
- Smart Balance Battery Circuit:Maximizes battery efficiency and longevity for more flight time.
- Powerful, Cooling System:Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.
- AG02 Gimbal:More than 20% reduced weight, with adjustable travel on both vertical and horizontal axis.
- Customizable RGB Gimbal Light- Ring:Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting.
- Foldable Antenna:Compact and easy to store without compromising signal strength.
- Built-in Microphone:For future feature expansion.
- Built-in Gyro:Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
- Interchangeable Shoulder Switches:Customize your controls to match your flying style.
Specifications

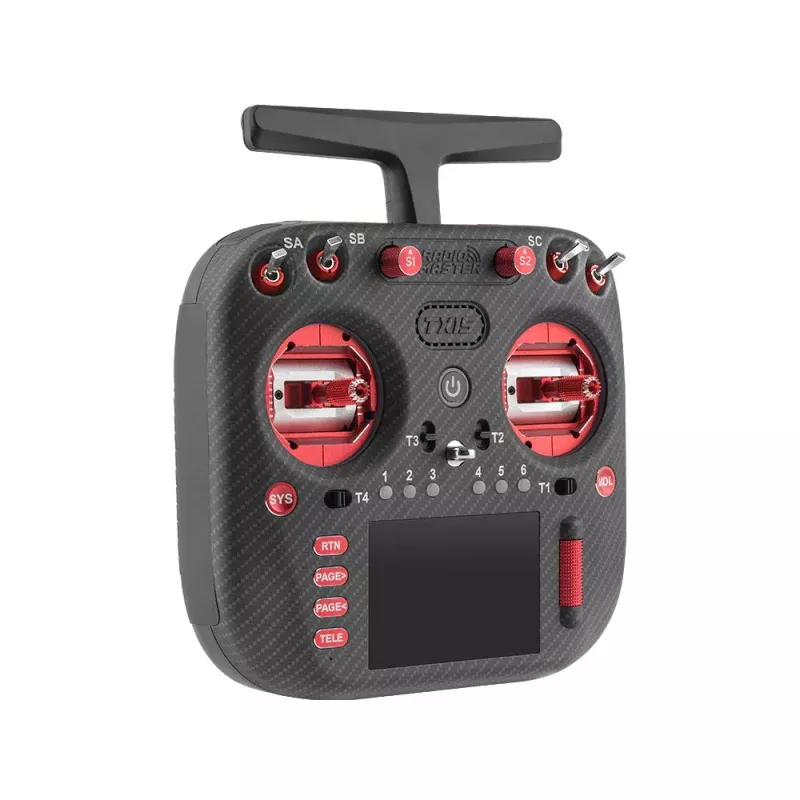

- Item: TX15 Max Radio Controller
- Size: 178*168*81mm
- Weight: 672g (without battery)
- Color: Red/ Black/ Gold
- Frequency: 2.400GHz OR Sub-G 900MHz
- Internal RF: ELRS 2.4GHz / Sub-G 900MHz
- Supported Protocols: Express-LRS
- Cooling Fan: Yes
- Transmitter Module: Built-in ELRS
- Built-in Microphone: Yes (Future expansion)
- Built-in Gyro: Yes (ICM-42607-C)
- MicroSD card* (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
- Antenna Gain: 2dB (transmit power adjustable)
- Current: 875mA at max power output
- Voltage Range: 6.6 – 8.4V DC
- Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
- Module Firmware: ExpressLRS
- Channels: Max 16 channels (Receiver dependent)
- Display: 3.5-inch IPS touchscreen (480 x 320 resolution)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
- Connectivity: USB-C
- Gimbals: AG02 CNC Hall sensor gimbals
- Gimbal Sticks: M4
- Upgrade Method: USB-C (UF2)
- Module Bay: JR-compatible module bay for additional modules
Dimensions
User Manual
- TX15 User Manual
- TX15 Downloads
Associated Products
- TX15 Radio
- TX15 Max Radio
- AG02 CNC Hall sensor gimbals
- LED Gimbal Rings
- 18650 3200mAh 3.7V Battery
- 21700 5000mAh Battery
- SE/SF 3 Position Assembly for TX15 Radio
Package Includes
- 1 * TX15 Max Radio Controller
- 1 * Signature Carry Case
- 1 * Short 2-position Latching Shoulder Toggle Switch Assembly
- 1 * Short 2-position Momentary Shoulder Toggle Switch Assembly
- 1 * 18650 Battery Tray
- 1 * USB-C Cable
- 1 * Screen Protector
- 1 * 1.5mm Hex Wrench
- 4 * High Tension Gimbals Springs
- 2 * Gimbal Stick Set Screw
- 1 * Stickers Set
- 1 * User Manual
- 1 * Inventory Card
