Key Features
-
4.3-Inch Touch Display
480272 TFT full-color touchscreen with intuitive EdgeTX interface -
Fast USB-C Charging
2.2A internal charging with reverse-polarity protection -
Premium Gimbal Options
Choose between upgraded V4.0 Hall sensors or premium AG01 CNC gimbals -
Built-in RF Options
Select either 4-in-1 multiprotocol or ExpressLRS backpack edition -
Enhanced Audio System
Rear headphone jack and improved audio quality -
Ergonomic Refinements
Optional high/low rear grips, improved knobs, and smoother sliders -
Modern Connectivity
Standard 3.5mm trainer port and rear DIY expansion socket
Specification

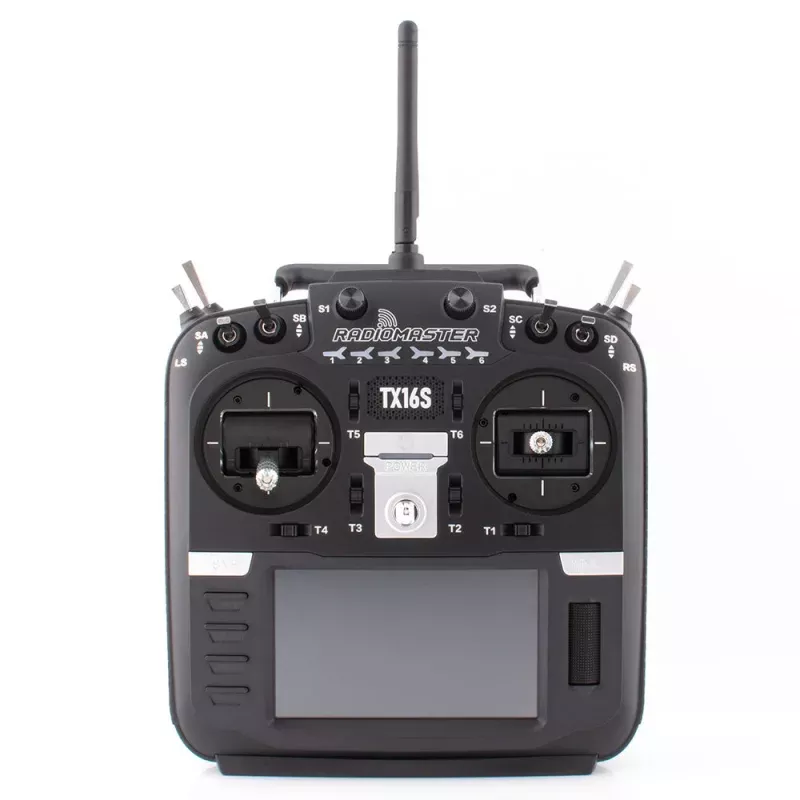

- Item:TX16S Mark II
- Size: 287x129x184mm
- Weight: 750g (without battery)
- Transmission frequency: 2.400GHz-2.480GHz
- Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401) Option 2: Internal ELRS (SX1280)
- SD card: 256MB by default, 8GB maximum
- Antenna gain: 2db (transmit power adjustable)
- Working current: 400mA
- Working voltage: 6.6-8.4v DC
- Radio firmware: EdgeTX
- Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
- Channels: Up to 16 channels (depending on the receiver)
- Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
- Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 CNC Hall sensor
- Module Bay: JR compatible module bay
- Upgrade method: Supports USB-C online / SD card offline upgrade
Support EdgeTX and OpenTX
EdgeTX is installed by default (Touch screen enabled).
- Requires EdgeTX version 2.6.0 or OpenTX version 2.3.15 or later.
