RUSHFPV 10W
3.13.9GHz Video Transmitter
Long-Range Video Power in a Compact 38g Package
10W Max Output40dBm for extreme range40 Channels3.13.9GHz widebandOnly 38gWith efficient heatsinkDigital PLLClosedloop precisionIRC TrampFCready control730V InputWide voltage range
General Characteristics
| Parameter | Specification |
|---|---|
| Frequency Band | 31703950 MHz |
| Channels | 40 |
| Modulation | FM |
| Frequency Control | PLL |
| Frequency Stability | 100kHz (Typ.) |
| S/N (For +3MHz) | >70dBc |
| Antenna Port | SMA 50 |
| Video Input Level | 1V0.2Vp-p |
| Operating Temp | -20C to +60C |
| Control Protocol | IRC Tramp |
| Power Supply | DC 730V |
RF Power Levels
| Value | Power Level | Typical Output |
|---|---|---|
| 0 | PIT Mode | <-45dBm |
| 1 | 25mW | 14dBm 0.5 |
| 2 | 200mW | 23dBm 0.5 |
| 3 | 2W | 33dBm 0.5 |
| 4 | 10W | 40dBm 0.5 |
Product Highlights
Production aging + power calibration USB config & firmware (custom order) Integrated power amplifier Compact heatsink for 10W stability
Product Dimensions
Size16mm 33mm 55mm SMA interface
Antenna Specifications
| Parameter | Specification |
|---|---|
| Polarization | RHCP |
| Gain | 2 dBi |
| Bandwidth | 31004100 MHz |
| V.S.W.R | <1.5 |
| Radiation Pattern | Omni-directional |
| Cable | RG402-SMA Male |
| Size | 29 36 mm |
Applications
Longrange FPV fixedwing & multirotor Commercial drone video transmission Industrial inspection & surveillance Search & rescue operations Broadcast & live event coverage
Control Interface Single Button RGB
Blue = Band Red = Channel Green = PowerLong Press enter setting Short Press adjust Green always ON = PIT Mode | Connect DATA pin for IRC Tramp via FC
Product Highlights
Production aging + power calibration USB config & firmware (custom order) Integrated power amplifier Compact heatsink for 10W stability
Applications
Longrange FPV fixedwing & multirotor Commercial drone video transmission Industrial inspection & surveillance Search & rescue operations Broadcast & live event coverage
Package Includes

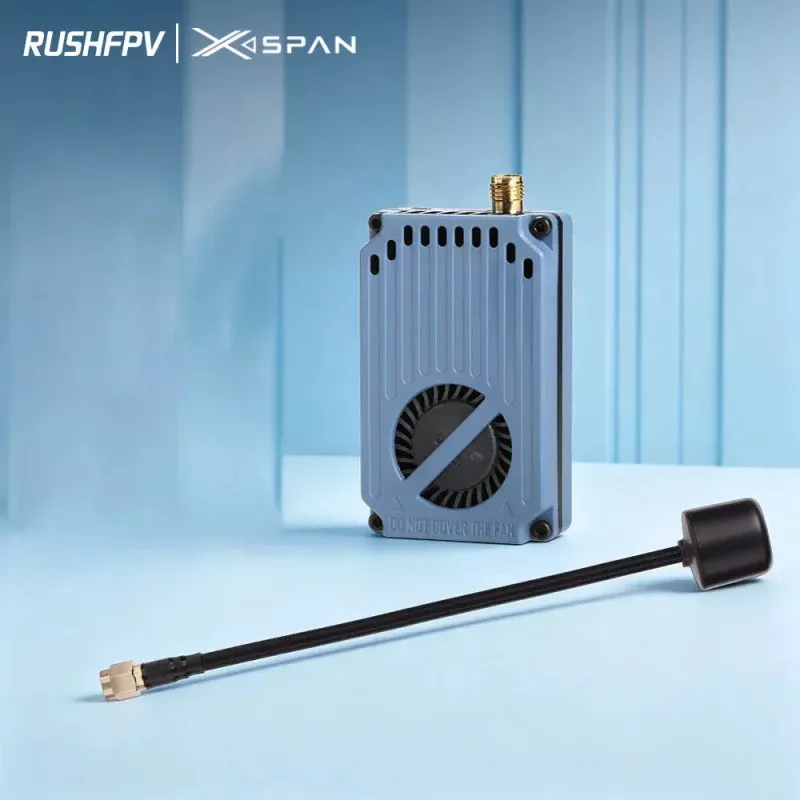

- 1 RUSHFPV 3.13.9GHz 10W VTX
- 1 Circularly Polarized Wideband Antenna (SMA)
XSPAN 31391 User Manual
Complete instructions, channel tables, and safety information.
Download PDF RUSHFPV 10W VTX | CAPTAINRC
