RUSHFPV XN70855
78.5GHz 5W Video Transmitter
Next-Gen RF Performance in a 38g Package
5W Max Output37dBm for extreme range80 Channels78.5GHz widebandOnly 38gWith efficient heatsinkDigital PLLClosedloop precisionIRC TrampFCready control730V InputWide voltage range
Product Highlights
Production aging + power calibration USB config & firmware (custom order) Integrated onchip power amplifier Compact heatsink for 5W stability
Product Dimensions
Dimensions: 16mm 33mm 55mm
General Characteristics
| Parameter | Specification |
|---|---|
| Frequency Band | 70608500 MHz |
| Channels | 80 |
| Modulation | FM |
| Frequency Control | PLL |
| Frequency Stability | 100kHz (Typ.) |
| Frequency Precision | 200kHz (Typ.) |
| S/N (For +3MHz) | >55dBc |
| Antenna Port | SMA 50 |
| Video Input Level | 1V0.2Vp-p (typ.) |
| Operating Temp | -20C to +60C |
| Control Protocol | IRC Tramp |
| Power Supply | DC 730V |
RF Power Levels
| Value | Power Level | Typical Output |
|---|---|---|
| 0 | PIT Mode | <-20dBm |
| 1 | 25mW | 14dBm 0.5 |
| 2 | 200mW | 23dBm 0.5 |
| 3 | 1W | 30dBm 0.5 |
| 4 | 5W | 37dBm 0.5 |
* Power rating refers to the port output power of the VTX during continuous operation at an ambient temperature of 25C, not the peak power during cold start.
Channel List (MHz)
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| BAND A | 7060 | 7080 | 7100 | 7120 | 7140 | 7160 | 7180 | 7200 |
| BAND b | 7220 | 7240 | 7260 | 7280 | 7300 | 7320 | 7340 | 7360 |
| BAND E | 7380 | 7400 | 7420 | 7440 | 7460 | 7480 | 7500 | 7520 |
| BAND F | 7540 | 7560 | 7580 | 7600 | 7620 | 7640 | 7660 | 7700 |
| BAND r | 7720 | 7740 | 7760 | 7780 | 7800 | 7820 | 7840 | 7860 |
| BAND P | 7880 | 7900 | 7920 | 7940 | 7960 | 7980 | 8000 | 8020 |
| BAND L | 8040 | 8060 | 8080 | 8100 | 8120 | 8140 | 8160 | 8180 |
| BAND u | 8200 | 8220 | 8240 | 8260 | 8280 | 8300 | 8320 | 8340 |
| BAND H | 8360 | 8380 | 8400 | 8420 | 8440 | 8460 | 8480 | 8500 |
| BAND o | 7215 | 7385 | 7555 | 7735 | 7915 | 8095 | 8285 | 8475 |
Control Interface Single Button RGB
Blue = Band Red = Channel Green = PowerLong Press enter setting Short Press adjust Green always ON = PIT Mode | Connect DATA pin for IRC Tramp via FC
Antenna Specifications
| Parameter | Specification |
|---|---|
| Polarization | RHCP |
| Gain | 2 dBi |
| Bandwidth | 70008500 MHz |
| V.S.W.R | <1.5 |
| Radiation Pattern | Omni-directional |
| Cable | RG402-SMA Male |
| Size | 20 22 mm |
Applications
Longrange FPV fixedwing & multirotor Commercial drone video transmission Industrial inspection & surveillance Search & rescue operations Broadcast & live event coverage
Package Includes

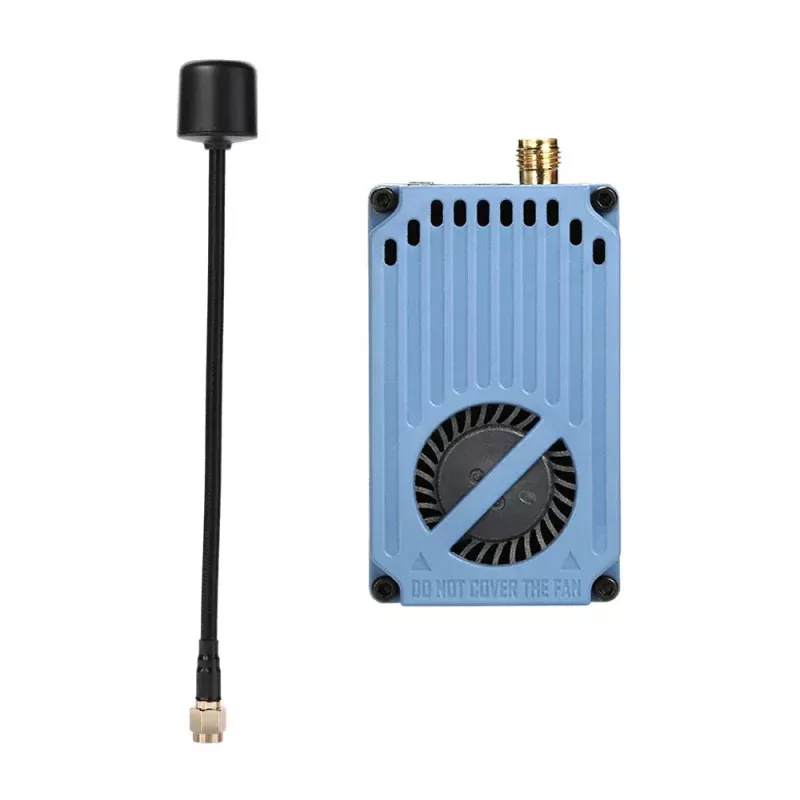

- 1 RUSHFPV XN70855 78.5GHz 5W VTX
- 1 Circularly Polarized Wideband Antenna (SMA)
XN70855 Product Manual
Complete instructions, channel tables, and safety information.
